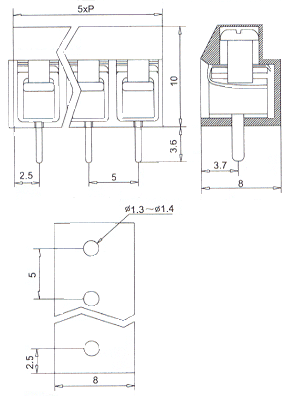

| JK126-500 Terminal Block with UL |
| Material |
|
| Contact |
: Bronze |
| (metal housing) |
|
| Terminal screw |
: Steel Galvanized and |
|
chormatized of Nickel |
|
plated or Tin plated |
|
(Standard option) |
| Wire guard |
: Copper Alloy |
| Suface of solder tail |
: Tin plated |
| Insulator body |
: Polyamide(Glass filled) |
| (housing) |
(UL94V-0) |
| Electrical |
|
| Voltage rating |
: 300VAC |
| Current rating |
: 8Amps/way max. |
| Insulation resistance |
: 5000MΩ/1000V |
| Wire range |
: 14-26AWG |
| Operation temperature |
: -33℃ to+120℃ |
| Torque |
: 4kg-cm/M2.5 |
| Satety apporval |
:  | |
 |
|
