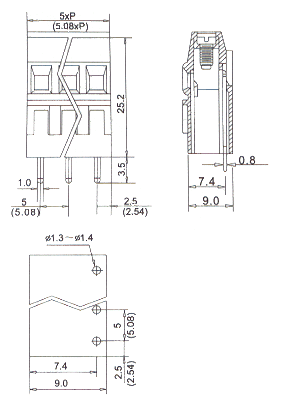

| JK128IH-500、JK128IH-508 Terminal Block with UL |
| Material |
|
| Contact |
:Steel Stamping Zinc Die |
| (metal housing) |
Casting or Brass |
| |
Machined ( Option ) |
| Terminal screw |
: Steel Galvanized and |
|
chormatized of Nickel |
|
plated or Tin plated |
| |
(Standard option) |
| Suface of solder tail |
: Brass With Tin Plated |
| Insulator body |
: Polyamide(Glass filled) |
| (housing) |
(UL94V-0) |
| Electrical |
|
| Voltage rating |
: 300VAC |
| Current rating |
: 10Amps/way max. |
| Insulation resistance |
: 5000MΩ/1000V |
| Wire range |
: 12-24AWG |
| Operation temperature |
: -33℃ to+120℃ |
| Torque |
: 4kg-cm/M2.5 |
| Satety apporval |
:  | |
 |
|
