Application scope↓ |
| |

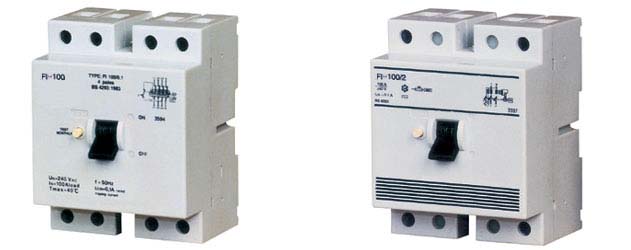

FI-100 Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault. |
| |
Standard↓ |
| |
IEC61008 |
| |
Main technical parameters↓ |
| |
|
|
| Type |
FI-100 |
| Number of poles |
2P、4P |
| Rated Current(In) |
63、80、100、125A |
| Rated operating current( I △ n) |
100、300、500mA |
| Rated non-operation Current( I △ n) |
50、150、250mA |
| Rated Voltage(Un) |
AC 230/415 V |
| Residual current off-time |
≤0.1s |
| Type |
A、AC |
| Ultimate short-circuit breaking capacity(Icn) |
3000A |
| Endurance |
≥ 4000 |
| Terminal protection |
IP20 | |  |
