Application scope↓ |
| |
Protection against the effects of earth leakage overload and short circuit currents.
2P switching of ph&N,Phase only protected against overloads and short circuits.
In commercial,industrial and domestic electrical distribution systems.
Note:must mot be used as the sole means of providing protection against direct contact.
The RCBO incorporates a residual current operated electromagnetic release which operates without any auxiliary source of suppl to open a circuit automatically in the case of an earth leakage fault between phase and earth greater than or equal to In.The RCBO combined MCB&RCCB provides:
Protection against indirect contact
Complementary protection against direct contact
Protection for the installation against in sulation faults |
| |
Standard↓ |
| |
GB16917
IEC61009 |
| |
Main technical parameters↓ |
| |
| Type |

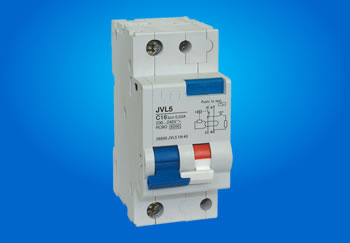

JVL5 |
| Number of poles |
1P+N |
| Rated Current(In) |
1、2、3、4、6、10、16、20、25、32、40A |
| Rated operating current( I△n) |
30、100、300、500mA |
| Rated Voltage(Un) |
AC 230(240) V |
| Residual operating current scope |
0.5I△n~I△n |
| Residual current off-time |
≤0.3s |
| Type |
A、AC |
| Ultimate short-circuit breaking capacity(Icn) |
6000A |
| Endurance |
≥4000 |
| Terminal protection |
IP20 | |
