NC100LE 1P RCBO
NC100LE 3P RCBO

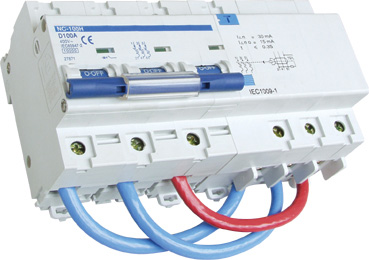

| NC100LE Residual Current Circuit Breaker with Over Current Protection |
| Application |
| NC100LE RCBO is suitable for the circuit of 50Hz, rated voltage 230/400V, and rated current up to 100A. It has the earth leakage, overload & short circuit protect function. It can also add over voltage protect function. It is mainly used in building illumination and electrical distribution system. |
| Specifications |
|
Number of Poles |
1P+N, 2P, 3P, 3P+N, 4P |
|
Rated Current (A) |
40, 50, 63, 80, 100 |
Rated Residual Operating Current (  )(mA) |
30, 50, 100, 200, 300 |
Rated Residual Non-operation Current ( o)(mA) |
≤0.5  |
|
Rated Voltage (V) |
AC 230/400 |
|
Residual Current Off-time |
≤0.1S |
|
Short Circuit Capacity (Icu) |
3000A |
|
Endurance |
≥4000 |
|
Tripping Curve |
C, D |
|
Protection Degree |
IP20 | |
| |

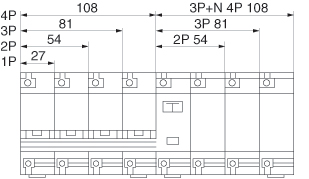

| Overall And Mounting Dimensions (Unit: mm) |
  | | | |
|
|
|
|
