Axial AC Fan TA17251 Series


General Data

Electric moltor:Shaded pole type AC electric motor design
Frame:High quality aluminum alloy outside frame
Anti-corrosive and moisture proof structure
Impeller:UL-0 70% PBT+30FRP.
Bearing:self lubricating bearing and ball bearing
Insulation:class B
Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100MΩ higher
Dielectric strength:0.5mA 1500V/ACmin.
Safety protection:Impedance protection
Operating temperature:-10-+70℃
Storage temperature:-40-+70℃

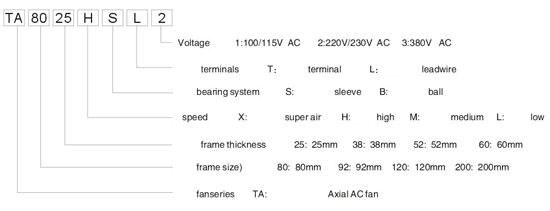

Name System
Technica Iparameter

Dimension
(mm)

Model

Voltage
(VAC)

Frequency
(Hz)

Current
(AMP)

Power
(Watts)

Speed
(RPM)

Air Flo
(CFM)

Pressure
(inch/H2O)

Moise
(dBA)

Weight
(Gram)

Φ172x51 TA17251MBL-1 115 50 0.33 25 2500 190/5.40 0.48 53.3 908
TA17251MBL-2 230 50 0.18 25 2500 190/5.40 0.48 53.3 908
TA17251MBL-2 230 60 0.22 35 2700 205/5.80 0.52 56.2 908
TA17251MBL-3 380 50 0.14 30 2500 190/5.40 0.48 53.3 908
Outline Drawing
