Brushless DC Fan TFS6025 Series
 |
| General Data |
Insulation resistance:more than 10m Ω between housing and plus end wire redcolor)at 500V DC。
Dielectric strength:no damage can be found 600v AC.2 secretary,between housing and plus end of lead wire.
Material:
Frame:UL94V-0 70% P.B.T.+30% F.R.P
1mpeller:UL94V-0 70% P.B.T.+30% F.R.P
Bearing:preclsion ball bearing system precision .Qilimpregnated sleeve bearing system
Operating temperature:-10 to+℃70
Storage temperature:-40 to+℃70
Opreating voltage:rated voltage±15%. |

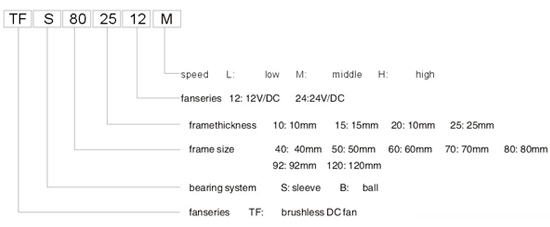

| Name System |
 |
| Technica Iparameter |
| Dimension (mm) |
Model |
Voltage (VAC) |
Current (AMP) |
Power (Watts) |
Speed (RPM) |
Air Flo (CFM) |
Pressure (inch/H2O) |
Moise (dBA) |
Weight (Gram) |
| 60x60x25 |
TFS6025L |
12V |
0.08 |
0.96 |
2500 |
7.96 |
1.26 |
19.68 |
56 |
| TFS6025M |
12V |
0.10 |
1.20 |
3000 |
9.87 |
1.76 |
22.46 |
56 |
| TFS6025H |
12V |
0.14 |
1.68 |
4000 |
13.39 |
3.42 |
28.54 |
56 |
| TFS6025L |
24V |
0.08 |
1.92 |
2500 |
7.97 |
1.26 |
19.68 |
56 |
| TFS6025M |
24V |
0.12 |
2.88 |
3000 |
9.87 |
1.76 |
22.46 |
56 |
| TFS6025H |
24V |
0.14 |
3.36 |
4000 |
13.39 |
3.42 |
28.54 |
56 | |

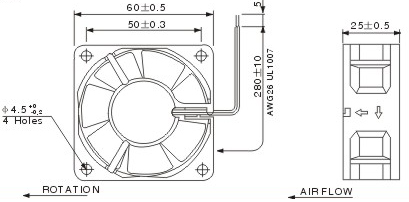

| Outline Drawing |
 | | |
|
