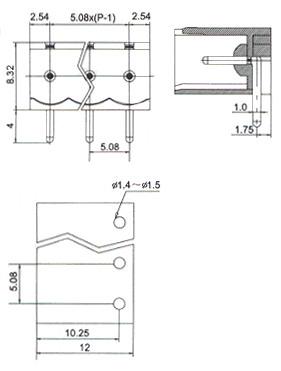

| JK2EDGR-508 Plug Terminal Block |
| Material |
|
| (housing) |
: Polyamide(Glass filled) |
| |
(UL94V-0) |
| Solder Pin |
: Brass,Tin plated |
| |
|
|
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| Electrical |
|
| Voltage rating |
: 250VAC |
| Current rating |
: 15Amps/way max. |
| Insulation resistance |
: 500MΩ/500V |
| Operation temperature |
: -40℃ to+105℃ |
| Satety apporval |
:  |
| |
| |
 |
|
