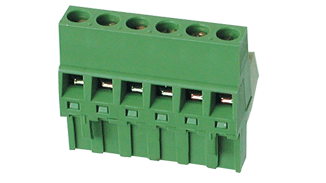

| JK2EDGKA-508 Plug Terminal Block |
| Material |
|
| Contact |
:Steel Stamping Zinc Die |
| (metal housing) |
Casting or Brass |
| |
Machined ( Option ) |
| Terminal screw |
: Steel Galvanized and |
|
chormatized of Nickel |
|
plated or Tin plated |
| |
(Standard option) |
| Wire guard |
: Copper Alloy |
| Surface of solder tail |
:Tin Plated |
| Insulator body |
: Polyamide(Glass filled) |
| (housing) |
(UL94V-0) |
| Electrical |
|
| Voltage rating |
: 300VAC |
| Current rating |
: 15Amps/way max. |
| Insulation resistance |
: 5000MΩ/1000V |
| Wire range |
: 14-24AWG |
| Operation temperature |
: -40℃ to+105℃ |
| Torque |
: 4kg-cm/M2.5 | |
 |
|
