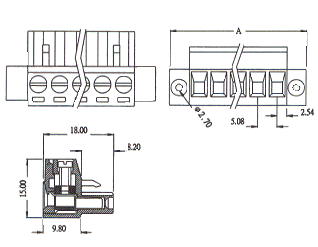

| JK2EDGIK-508 Plug Terminal Block |
| Material |
|
| Contact |
: Phosphor bronze. |
| |
Tin plated 0.4T |
| Screw |
: M3.0,steet,Ni plated |
| Cage clamp |
: Brass,Ni plated |
| Insulating body |
: Polyamide66(UL94V-0) |
|
|
|
|
|
|
|
|
| |
|
| |
|
| Electrical |
|
| Voltage rating |
: 300VAC |
| Current rating |
: 12Amps/way max. |
| Insulation resistance |
: 5000MΩ/500V |
| Wire range |
: 14-26AWG |
| Operation temperature |
: 55℃ to+105℃ |
| |
| |
 |
|
