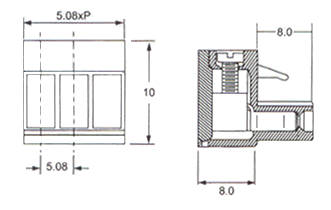

| JK508K-508 Plug Terminal Block |
| Material |
|
| Housing |
: Polyamide 6.6,Green of |
| Wire cage & Clamp |
: Brass 0.5t, Ni Plated |
| Wire Protector |
: 0.2t Phosphor Bronze. |
| |
Ni Plated |
| Terminal Screw |
: Steel, Zinc Plated |
|
|
|
|
|
|
|
|
| |
|
| |
|
| Electrical |
|
| Voltage rating |
: 300VAC |
| Current rating |
: 10Amps/way max. |
| Insulation resistance |
: 500MΩ/500V |
| Operation temperature |
: 55℃ to+105℃ |
| |
|
| |
| |
 |
|
