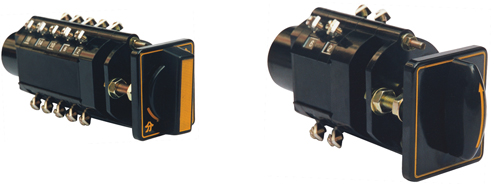

Application ¡¡¡¡LW2D rotary switch applied to change over of circuits and control motors as well.

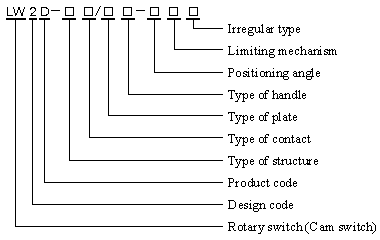

Designation
¡¡ ¡¡Limiting:X representing limiting; ¡¡Switching angles:8 represent 45o ; ¡¡Handle:1 repre senting indicating lamps,4 limiting,6 spring return,7 key lock 8limited spring return; ¡¡Escutcheon plate:F-square escutcheon plate,O-round escutcheon plate.
Specification
Rated thermal current Ith |
A |
10 |
|
V |
240 |
250 |
|
|
|
|
AC-15 2-breaking point |
A |
2 |
|
AC-15 single-breaking point |
A |
1 |
DC-13 2-breaking point |
A |
|
1.1 |
DC-13 single-breaking point |
A |
0.5 | Mechanical life ¡¡¡¡Mechanical life without load:0.03¡Á106times, operation frequency is 120 times/h. ¡¡¡¡Mechanical life with load:0.01¡Á106times under AC-15, 0.01¡Á106times under DC-13, operation frequency is 300 times/h.

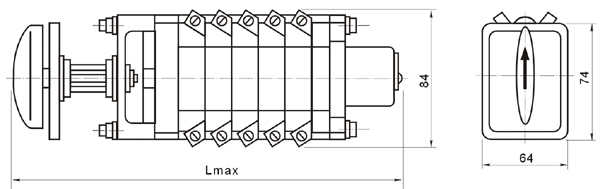

Dimensions and installation Dimensions

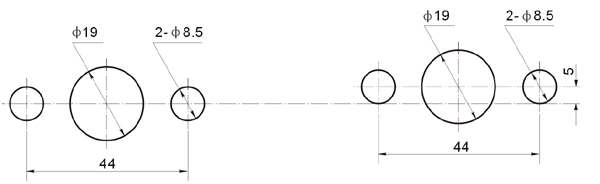

¡¡¡¡¡¡¡¡¡¡¡¡¡¡Spring return£ºLmax=130+18n £¨n for number of layers£© ¡¡¡¡¡¡¡¡¡¡¡¡¡¡Others£ºlmax=141+18n£¨n for number of layers£© Installation
|
