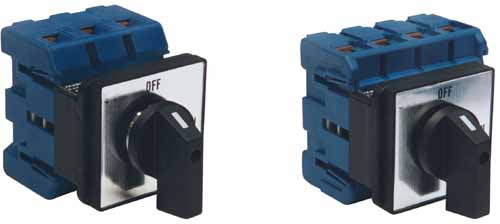

Application
LW30 rotary switch applied to change over of circuits and control motors as well. |
| |
| Designation |
 |
| Accessorial code: |
Number poles: 3P

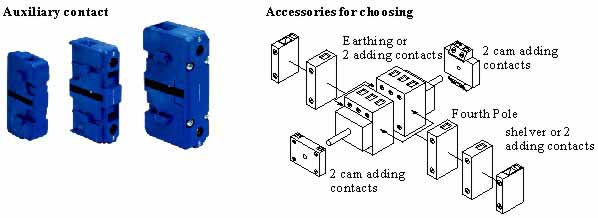

Adding contacts: 0 Not order it, 1 Order it
Earthing terminal: 0 Not order it, 1 Order it
Neutral terminal: 0 Not order it, 1 Order it
Way of installation: 1 Pad-lock escutcheon plate, 2 Escutcheon plate
Type of box: 0 Not order it, 1 Order IP65 Plastic box |

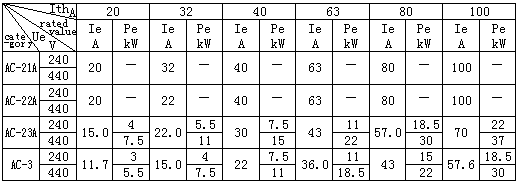

| Specification |
 |
 |
 |

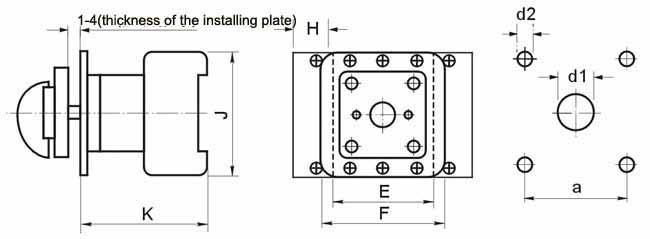

| Dimensions and installation |
| Square escutcheon plate |
|
|
|
Type |
Dimensions（mm） |
Installation(mm) |
|
LW30-20/3
LW30-32/3
LW30-40/3
LW30-63/3
LW30-80/3
LW30-100/3 |
E |
F |
H |
J |
K |
a |
d1 |
d2 |
|
42 |
64 |
13.5 |
54 |
61 |
48 |
20 |
4.2 |
|
42 |
64 |
13.5 |
54 |
61 |
48 |
20 |
4.2 |
|
50 |
64 |
16 |
64 |
67 |
48 |
20 |
4.2 |
|
50 |
64 |
16 |
64 |
67 |
48 |
20 |
4.2 |
|
70 |
64 |
22.5 |
80 |
82 |
48 |
20 |
4.2 |
|
70 |
64 |
22.5 |
80 |
82 |
48 |
20 |
4.2 | |

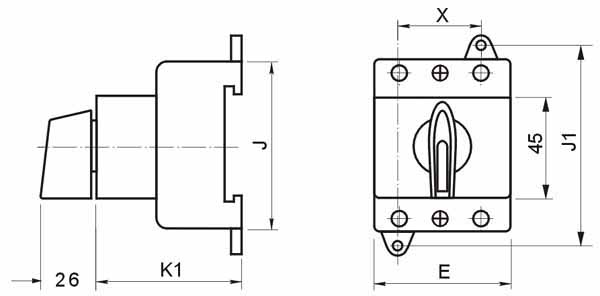

| Bottom installation |
 |

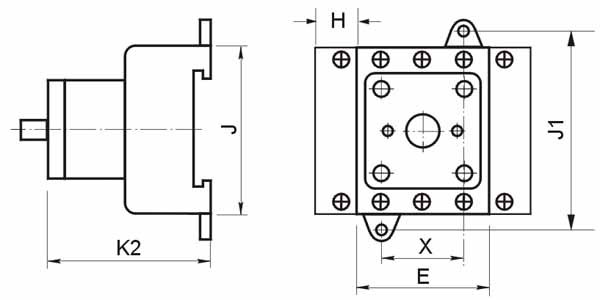

| Bottom installation and accessory |
 |
|
|

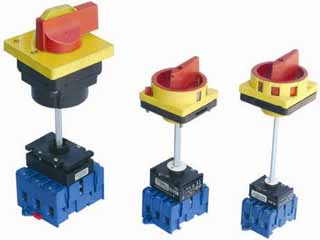

Installation of doorlock safety switch
|
|
|
|
|
|
E |
H |
J |
K1 |
K2 |
J1 |
X |
|
LW30-20/3 |
42 |
13.5 |
54 |
50 |
50 |
60 |
22 |
|
LW30-32/3 |
42 |
13.5 |
54 |
50 |
50 |
60 |
22 |
|
LW30-40/3 |
50 |
16 |
64 |
59 |
61 |
70 |
25 |
|
LW30-63/3 |
50 |
16 |
64 |
59 |
61 |
70 |
25 |
|
LW30-80/3 |
70 |
22.5 |
80 |
65 |
68 |
90 |
25 |
|
LW30-100/3 |
70 |
22.5 |
80 |
65 |
68 |
90 |
25 | |

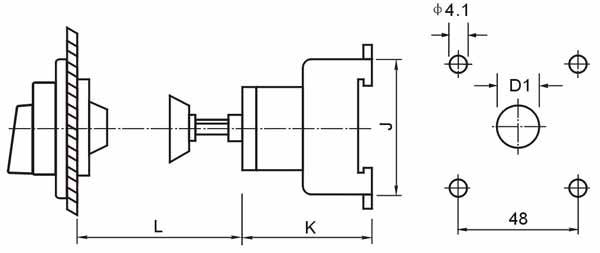

| 带门锁的底座安装 |
  |
 |
|
Type |
尺寸（mm） |
|
D1 |
K |
Lmin |
Lmax |
|
LW30-20/3 |
22 |
50 |
32 |
118 |
|
LW30-32/3 |
22 |
50 |
32 |
118 |
|
LW30-40/3 |
22 |
61 |
32 |
118 |
|
LW30-63/3 |
22 |
61 |
32 |
118 |
|
LW30-80/3 |
22 |
68 |
32 |
118 |
|
LW30-100/3 |
22 |
68 |
32 |
118 | |

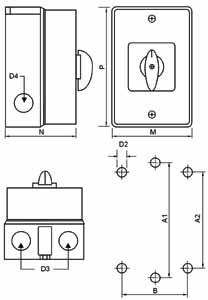

| Plastic box |
  |
| Dimensions and installation |
|
|
|
|
|
|
D3 |
D4 |
M |
N |
P |
A1 |
A2 |
B |
D2 |
|
LW30-20/3 |
23 |
19 |
85 |
80 |
160 |
150 |
-- |
-- |
4.1 |
|
LW30-32/3 |
23 |
19 |
85 |
80 |
160 |
150 |
-- |
-- |
4.1 |
|
LW30-40/3 |
29 |
23 |
91 |
91 |
190 |
178 |
-- |
-- |
4.1 |
|
LW30-63/3 |
29 |
23 |
91 |
91 |
190 |
178 |
-- |
-- |
4.1 |
|
LW30-80/3 |
37.5 |
23 |
100 |
100 |
250 |
-- |
229 |
124 |
4.1 |
|
LW30-100/3 |
37.5 |
23 |
100 |
100 |
250 |
-- |
229 |
124 |
4.1 | |
Way of order |
When you order our LW30 series, We need you data as following
1. Rated working current, for example:LW30-20;
2. Accessorial code, please write it orderly
1) Number of poles, for example: 3P;
2) Do you need adding contacts: 0 No order it, 1 Order it;
3) Do you need neutral terminal: 0 No order it, 1 Order it;
4) Do you need earthing terminal: 0 No order it, 1 Order it;
5) Way of installation:1 Escutcheon plate with pad-lock; 2 Escutcheon plate
6)Type of box: 0 Not order it, 1 Order it
3. Other accessorial code, please write it orderly

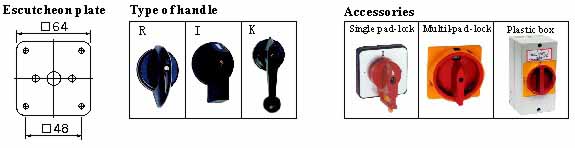

1) Type of Escutcheon plate: 1 Escutcheon plate; 2 Denote Φ22.5 hole; 3 Denote Φ25 hole; 4 Denote Φ30.5 hole
2) Do you need Escutcheon plate with airproof: 0 Not order it, 1 Order it
3) Colour of bottom plate: 1 Denote silver color; 2 Denote yellow; 3 Make it against your color
4) Character letter: 1 Note letter; 2 Chinese letter; 3 Special sign
5) Code of handle: R or K or I For example:
If you order 40A/3P with adding contacts and earthing terminal and Escutcheon plate without neutral terminal and plastic box. You must write: LW30-40/310120.
If you want to order 32A/3 with Doorlock safety switch
You must write: LW30-32/300030.
If you want to order 40A/3 with adding contacts, earthing terminal, Escutcheon plate, plate with airproof, Yellow, Chinese letter, K handle; without neutral terminal and plastic box. You mustwrite: LW30-40/310120.1123K. |
