Application
LWX1、LWX1B、LWX2 rotary switchs applied in control fo switch gerar,and changeover of electrical circuit.

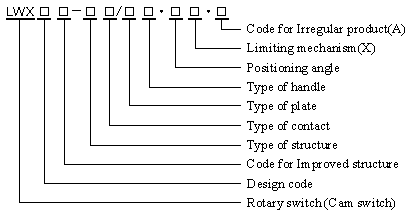

Designation
Spring return type:8 represent 45o limiting;
Escutcheon plate:F-square escutcheon plate,Y-round escutcheon plate. |
Technical parameters
|
Description |
LWX1 |
LWX1B |
LWX2 |
|
Rated thermal current Ith |
A |
5 |
5 |
5 |
|
Rated working voltage Ue |
V |
220 |
220 |
220 |
|
Rated working current Ie |
|
|
AC-15 |
A |
0.5 |
0.5 |
0.5 |
|
AC-13 |
A |
0.24 |
0.24 |
0.24 |
Mechanical life
Mechanical life without load:0.1×106times, spring return type is 0.05×106times,operation frequency is 120 times/h.
Mechanical life with load:0.03×106times under AC-15, 0.01×106times under DC-13, operation frequency is 120 times/h.
Dimensions

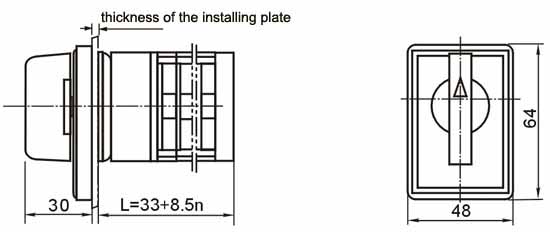

LWX1

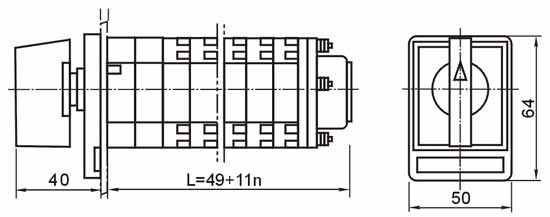

LWX1B

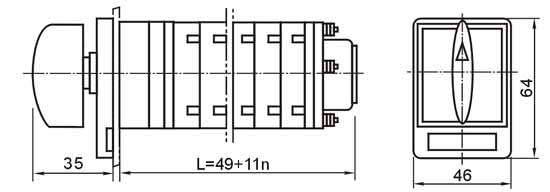

LWX2
|
|
| Re:n for number of layers |

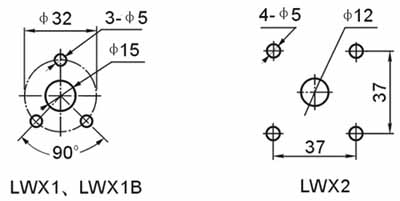

Installation
|
