Application
HZ5D suitable to starting,sotping,reversing of motors.

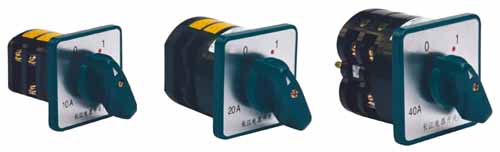

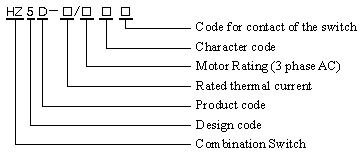

Designation
Re:Character code:L:0o-60o ,M:60o-0o-60o |
Classfication
According to application:
1.power switch,motor starting switch:2-poles L01,3-poles L02,4-poles L03;
2.shifting switch between two voltages:2-poles M04,3-poles M06;
3.reversible shifting switch of motor:M05
4.delta starting switch:M07
5.gear switch of greashift motor:2 speed M08,3 speed M16
Technical parameters
|
application |
HZ5D-10 |
HZ5D-20 |
HZ5D-40 |
|
Rated working voltage Ue |
V |
440 |
440 |
440 |
|
Rated thermal current Ith |
A |
10 |
20 |
40 |
|
Rated working current Ie |
A |
4 |
8 |
16 |
|
Power P |
kW |
1.7 |
4 |
7.5 |
Mechanical life
Mechanical life without load:0.01×106times,operation frequency is 120 times/h.
Mechanical life with load:0.03×106times under AC-23A,0.03×106times under AC-3,0.03×106times under AC-4,operation frequency is 120 times/h.

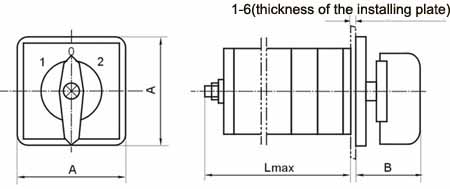

Dimensions
|
type |
Dimensions (mm)
|
|
A |
Lmax |
B |
|
HZ5D-10 |
60 |
32+14n |
38 |
|
HZ5D-20 |
60 |
34+13n |
38 |
|
HZ5D-40 |
75 |
40+16n |
38 |
Installation

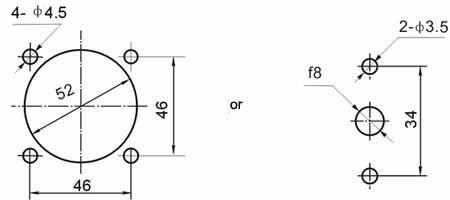

HZ5D-10

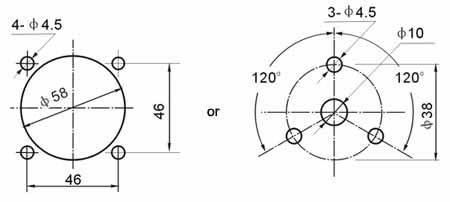

HZ5D-20

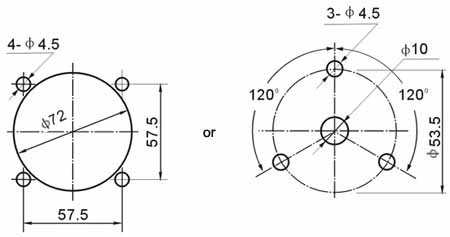

HZ5D-40
| | | | |
|
