Application
HZ5BGS is the power cut-off with pad-lock combination rotary switch is suitable to the circuit of tarting,sotping,reversing,speed-changing of motors.

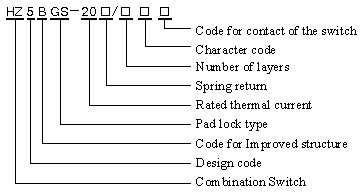

Designation
Technical parameters
|
Rated thermal current Ith |
A |
20 |
|
Rated working voltage Ue |
V |
440 |
|
Rated working current Ie |
A |
20 |
|
Power P AC-3 |
kW |
4 |
|
Operation AC-22A |
|
|
|
Non-load |
|
8500 |
|
Load |
|
1500 |
|
Total |
|
10000 |
Dimensions

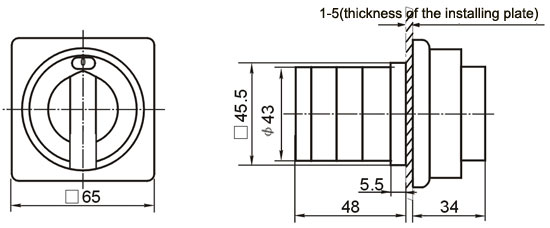

HZ5BGS-20/03-A、HZ5BGS-20/04-A type

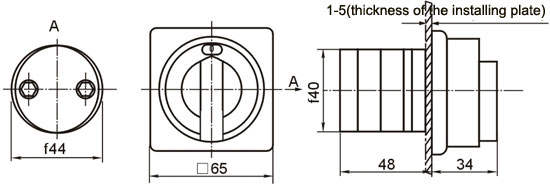

HZ5BGS-20/03-B、HZ5BGS-20/04-B type

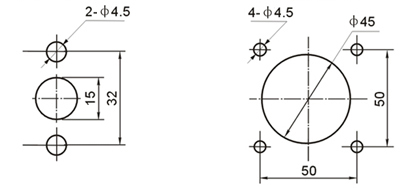

Installation
A type B type
|
