Application
HZ10D series switch mainly applied to connect and break circuits,changeover of circuits,as well as control the electrical motors.
Designation
Classification:
According to application:single power switch;2-powers or 2-circuits shifting switch(p);3-circuits shifting switch(S)
4-circuits shifting switch(G);controlling switch for minor capacity motor(N).
According to installation board:wiring before board;wiring behind board.
According to amount of poles:single-pole,2-poles,3-poles,4-poles.
According to amount of joints:1 joint,2 joints, 3 joints, 4 joints, 5 joints, 6 joints.
Technical parameters
|
type |
HZ10D-10 |
HZ10D-25 |
HZ10D-63 |
HZ10D-100 |
|
Rated thermal current lth |
A |
10 |
25 |
63 |
100 |
|
Rated working voltage Ue |
V |
240 |
440 |
240 |
440 |
240 |
440 |
240 |
440 |
|
Rated working current Ie |
|
|
|
|
|
|
|
|
|
|
AC-3 |
A |
|
3 |
|
6.3 |
|
|
|
|
|
AC-20A/21A/22A |
A |
|
10 |
25 |
25 |
|
63 |
|
100 |
|
DC-20A/21A |
A |
10 |
|
6 |
|
63 |
|
100 |
|
|
Power P AC-3 |
kW |
|
1.1 |
|
2.2 |
|
|
|
|
|
Operation AC-22A |
|
|
|
|
|
|
Non-load |
|
8500
1500
10000
|
8500
1500
10000
|
8500
1500
10000 |
8500
1500
10000 |
|
Load |
|
|
Total |
|
Dimensions and installation

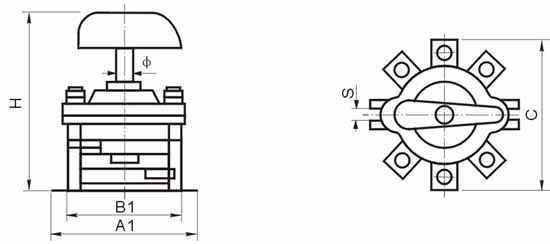

Before board

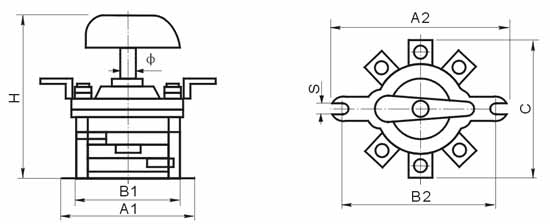

HZ10D-10、25 Behind board

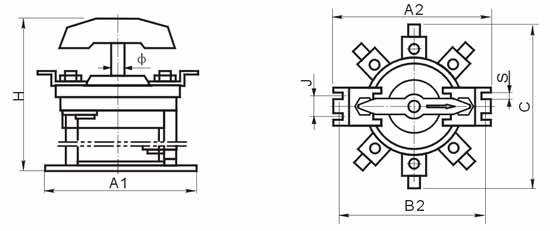

HZ10D-10、25 Behind board
|
type |
Dimensions (mm) |
Installation (mm) |
|
A1 |
A2 |
H |
φ |
C |
B1 |
B2 |
S |
J |
|
HZ10D-10/1 |
65 |
86 |
62 |
6 |
|
55 |
74 |
5 |
-- |
|
HZ10D-10/2 |
65 |
86 |
68 |
6 |
|
55 |
74 |
5 |
-- |
|
HZ10D-10/3 |
65 |
86 |
74 |
6 |
～58 |
55 |
74 |
5 |
-- |
|
HZ10D-25/2 |
100 |
114 |
98 |
8 |
|
90 |
100 |
6 |
-- |
|
HZ10D-25/3 |
100 |
114 |
108 |
8 |
～92 |
90 |
100 |
6 |
-- |
|
HZ10D-63/2 |
142 |
153 |
129 |
9 |
|
128 |
139 |
7 |
18 |
|
HZ10D-63/3 |
142 |
153 |
144 |
9 |
～154 |
128 |
139 |
7 |
18 |
|
HZ10D-100/1 |
142 |
153 |
152 |
9 |
～128 |
128 |
139 |
7 |
18 |
|
