Application

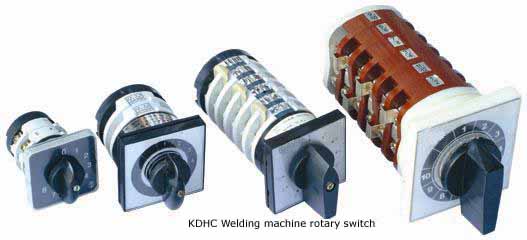

KDH Series Welding Machinery Switch is mainly application BX3 Welding Machine and could applied in other welding machine as well.
Designation
Classification
1 Classified by rated thermal current:
125A、160A and 200A.
2 Classified change-over type:
typeⅠandⅡ. Technical parameters
|
type |
KDH-125 |
KDH-160 |
KDH-200 |
|
Rated thermal current Ith |
A |
125 |
160 |
200 |
|
Non-load |
10,000 |
|
times/h |
120 |

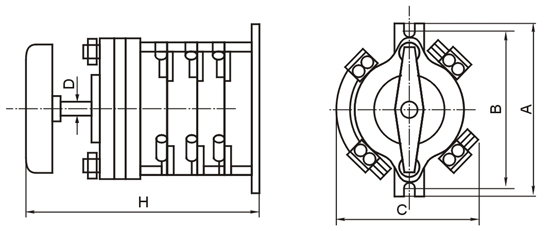

Dimensions and installation
|
type |
|
|
A |
B |
C |
H |
D |
|
KDH-125 |
142 |
112 |
120 |
170 |
Φ9 |
|
KDH-160 |
155 |
142 |
142 |
190 |
Φ9 |
|
KDH-200 |
155 |
142 |
142 |
194 |
Φ9 |
Connection diagram
KDH-125 Connection diagram

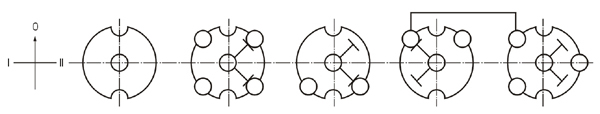

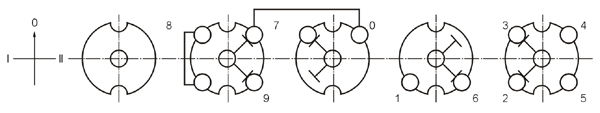

KDH-160、200 Connection diagram
| |  | | | |
|
