Cut-Out (RCI series)

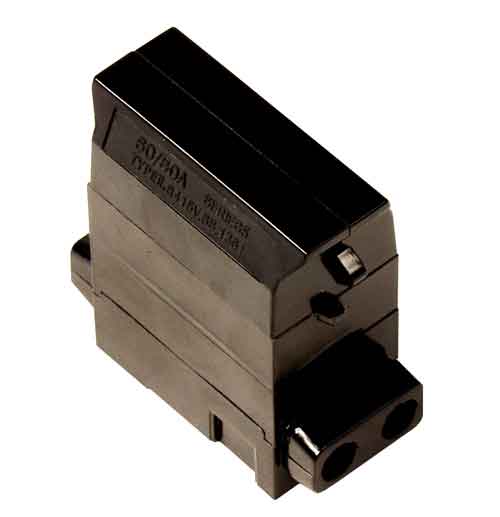

                                              RCI-60/80

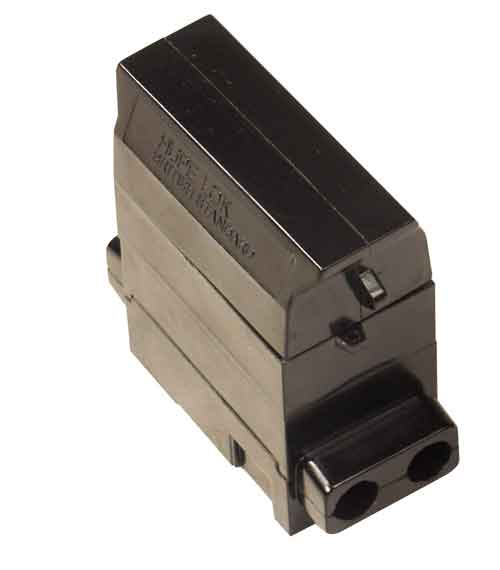

  RCI-60/80

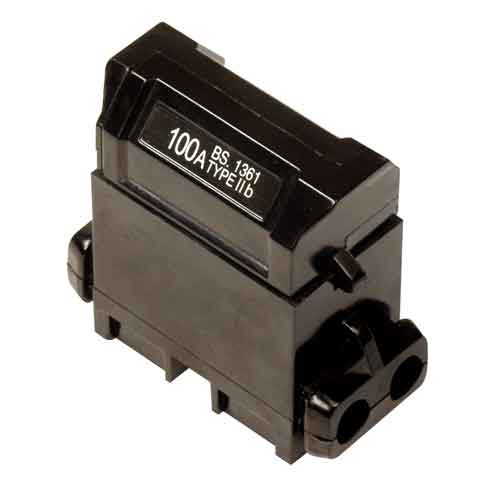

   RCI-100
> NOTE:

1. Our products are accord with IEC 60269-1 standard

2. Lifetime:
Beyond 12 Months

3. Application:
RCI series products are minly applied in low voltage distribution board to protect circuit. The product is composed of fuse, fixed and moving plug-ins and moulded case,with high insulation capacity, safety and reliability and easy in stallion.

>Technical Parameter:
specification
voltage
case support
rated current
rated accepted output
peak withstand
current
RCI-60/80
230-415V
60/80A
5W
20KA
RCI-100
230-415V
100A
6W
20KA
RCI-100(Ι)
230-415V
100A
6W
20KA
