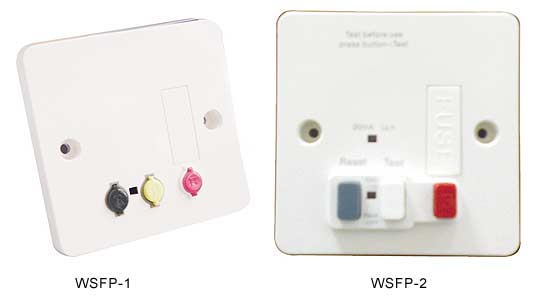

WSFP13A/30mA RCD Safety Socket
Application
■ An easily fitted Socket incorporating a Residual Current Device,give much greater safety in the use of electrical appliances against a rick of electrocution.
■ WSFP plastic type can be fitted to a standard box with minimum depth of 25mm.
■ Designed to be usd in the fied position only and not mounted outdoors.Press green reset(R)button the indicator flag turns red and indicator light turns on.
Press white/yellow test(T)button the indicator flag turns black and indicator light turns off means the RCD has tripped successfully
Press red fuse(F)button the fuse cartridge daps out for fuse replacement
■ Designed and manufactured in accordance with the relevant clauses of BS4293,and used with BS1362 fuse only.
Technical Data
Rated Voltage:AC220-240V/50Hz
Maximum operating current:13A
Rated trip current:30mA
Typical Trip time:40mS
RCD contact breaker:Double pole
Cable capacity:6mm
Fuse specification:13A BS1362
Wiring Instruction

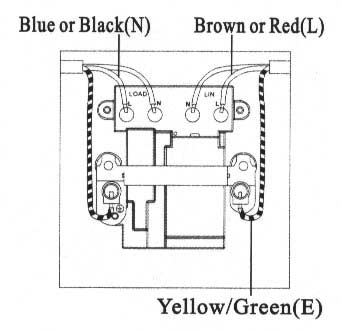

Terminals are clearly marked L,N,E on the back of RCD which should be wired with the same way as an ordinary socket. |
