Technical data:
Material:
● PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation . Working Termperature: - 40℃ to 65℃, short time is 80℃.
● PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force.Working Termperature: - 30℃to 90℃, short time is 110℃
● PA, Polyamide 6/6, 94V-2 grade. Inflaming retarding, good resist dissolve, good bounce impact force, Working Termperature: - 35℃ to 120℃, short time is 140℃.
● Brass, screw is Iron plated zinc.
● Voltage: 250 - 450V
● Color: Natural color as standard
● PE, 聚乙烯, 良好的柔韧性、透明度、延伸性、 抗溶性, 耐辐射, 工作温度: - 40℃ to 65℃, 瞬时可达: 80℃
● PP, 聚丙烯, 阻燃、低透明度、低刚性, 抗冲击力好, 工作温度: - 30℃ to 90℃, 瞬时可达 110℃
● PA, 尼龙 6/6, 防火等级:94V-2. 阻燃、 抗溶性、抗冲击力好, 工作温度: - 35℃ to 120℃, 瞬时可达140℃
● 黄铜, 螺丝铁质表面镀锌
● 适用电压范围: 250 - 450V
● 颜色: 产品本色,特殊颜色欢迎订做
|

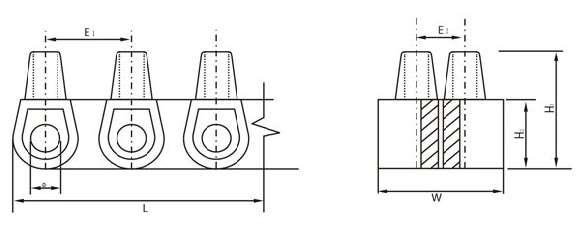

Item no. |
Spec. |
L |
W |
H1 |
H2 |
ø |
E1 |
E2 |
screw size |
material |
|
mm |
|
SP003-01 |
3A 4mm2 |
91.4 |
15.6 |
10.8 |
6.4 |
3 |
7.5 |
5.8 |
M2.5 x 4 |
PE PP PA |
|
SP003-02 |
6A 6mm2 |
112.5 |
15.5 |
12.8 |
7.5 |
3.3 |
9.5 |
6.2 |
M3.0 x 4.5 |
PE PP PA |
|
SP003-03 |
10A 10mm2 |
128 |
20.6 |
15 |
8.6 |
4.2 |
10.8 |
7.3 |
M3.0 x 6 |
PE PP PA |
|
SP003-04 |
15A 12mm2 |
137.3 |
22.5 |
16.6 |
9 |
4.5 |
11.5 |
8.1 |
M4.0 x 6.5 |
PE PP PA |
|
SP003-05 |
20A 14mm2 |
137.5 |
22.7 |
17.7 |
9 |
4.7 |
12 |
8.4 |
M4.0 x 6.5 |
PE PP PA |
|
SP003-06 |
30A 16mm2 |
164.5 |
25.3 |
19 |
10.7 |
5.6 |
19 |
9.3 |
M4.0 x 7 |
PE PP PA |
|
SP003-07 |
60A 25mm2 |
185.5 |
29.2 |
24 |
13.3 |
6.6 |
15.8 |
13 |
M5.0 x 9 |
PE PP PA |
|
SP003-08 |
80A 35mm2 |
204.5 |
32.6 |
27.2 |
14 |
7.8 |
17.3 |
14.8 |
M5.0 x 12 |
PE PP PA |
|
SP003-09 |
100A 40mm2 |
250 |
45.6 |
30.6 |
18 |
9 |
21.5 |
21.6 |
M6.0 x 12 |
PE PP PA | |
