Technical data:
Material:
● PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force. Working Termperature: - 6℃to 90℃, short time is 110℃
● PA, Polyamide 6/6, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,Working Termperature: - 35℃ to 120℃, short time is 140℃.
● Brass, screw is Iron plated zinc.
● Voltage: 250 - 450V
● Color: S.P006 Natural color
● PP, 聚丙烯, 阻燃、低透明度、低刚性, 抗冲击力好, 工作温度: - 6℃ to 90℃, 瞬时可达 110℃
● PA, 尼龙 6/6, 防火等级:94V-2. 阻燃、 抗溶性、抗冲击力好, 工作温度: - 35℃ to 120℃, 瞬时可达140℃
● 铜内件, 螺丝铁质表面镀锌
● 适用电压范围: 250 - 450V
● 功能: 系列产品底部平整，连接孔处有豁口方便截取，洗槽螺丝质量上乘，耐冲击.
● 颜色: 产品本色
|

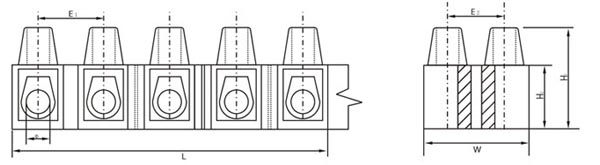

Item no. |
Spec. |
L |
W |
H1 |
H2 |
ø |
E1 |
E2 |
screw size |
material |
|
mm |
|
SP006-01 |
3A 4mm2 |
94 |
17 |
7 |
7 |
3 |
8 |
6.4 |
M2.5 x 4 |
PP PA |
|
SP006-02 |
6A 6mm2 |
117.5 |
20.2 |
7.9 |
7.9 |
3.3 |
10 |
8.2 |
M3.0 x 5 |
PP PA |
|
SP006-03 |
10A 10mm2 |
140 |
23 |
9.3 |
9.3 |
4 |
12 |
10 |
M3.0 x 6 |
PP PA |
|
SP006-04 |
30A 16mm2 |
175.7 |
26 |
11.8 |
11.8 |
5.5 |
15 |
12 |
M4.0 x 7 |
PP PA | |
