Technical data:
Material:
● PA, Polyamide 6/6, 94V-2 grade. Inflaming retarding, good resist dissolve, good bounce impact force,Working Termperature: - 35℃ to 120℃, short time is 140℃.
● Brass, screw is Iron plated zinc.
● Voltage: 250 - 450V
● Color: Green, blue, red, black color as standard
● PA, 尼龙 6/6, 防火等级:94V-2. 阻燃、 抗溶性、抗冲击力好, 工作温度: - 35℃ to 120℃, 瞬时可达140℃
● 黄铜, 螺丝铁质表面镀锌
● 适用电压范围: 250 - 450V
● 颜色: 绿色,蓝色, 红色, 黑色,特殊颜色欢迎订做
|

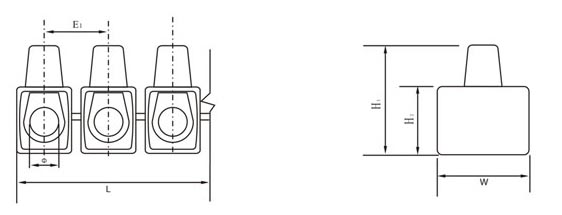

Item no. |
Spec. |
L |
W |
H1 |
H2 |
ø |
E1 |
E2 |
screw size |
material |
|
mm |
|
SP017 |
6mm2 |
123 |
14.3 |
18.5 |
9.6 |
4.3 |
10 |
\ |
M3.0 |
PA | |
