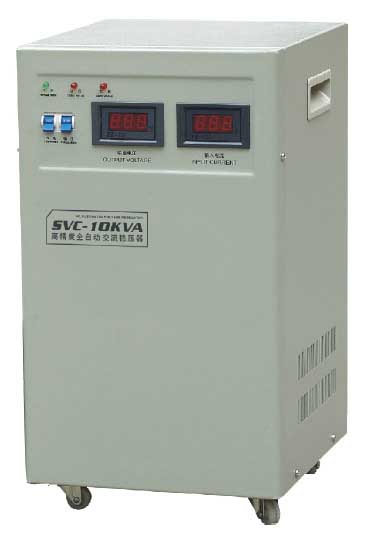

| General SVC-E(digital displaly type)high accuracy full-automatic AC voltage stabilizer |
|
SVC-E (digital display type) series single-phase voltage stabilizer adopts digital display technology, it can display
the delay time, output voltage and protection state automatically and has advantages of time-delay protection,
over-voltage and under-voltage protection, automatic alarming, etc. (Note: products of 2KVA and above 2KVA only
has protection time - delay protection, over - voltage and under-voltage protection, and also has function of putting
through commercial power directly) |
| Application SVC-E(digital displaly type)high accuracy full-automatic AC voltage stabilizer |
|
For office equipment, test equipment, medical equipment, industrial automation equipment, household appliance,
lighting system, communication system, etc. |
| Input Voltage |
Single-phase 160V-250V |
| Output Voltage |
1、0.5KVA-3KVA：单相220V与110V
2、5KVA-30KVA：单相220V |
| Precision |
220V±3%与110V±6% |
| Frequency |
50Hz/60Hz |
| Adjusting Time |
<1秒(输入电压变化10%时) |
| Efficiency |
>90% |
| Over-voltage protection |
246V±4V |
| Delay-time |
长5分±2分，短5秒±2秒 |
| Ambient Temperature |
-10℃-+40℃ |
| Relative humidity |
<95% |
| Exotherm |
<60℃ |
| waveform distortion |
no additional waveform distortion |
| Load power factor |
0.8 |
| Dielectric Strength |
1500V/min |
| Insulation Resistance |
>5MΩ | |
| Model and specification SVC-E(digital displaly type)high accuracy full-automatic AC voltage stabilizer |
| Spec(KVA) |
Product size D×W×H(cm) |
Packing size D×W×H(cm) |
Weight(kg) |
Qty |
| SVC-E0.5 |
17×19×13 |
44×25×35 |
5 |
4 |
| SVC-E1 |
20×22×16 |
50×28×40 |
7 |
4 |
| SVC-E1.5 |
20×22×16 |
50×28×40 |
8 |
4 |
| SVC-E2 |
2.6×24×19 |
34×32×50 |
14 |
2 |
| SVC-E3 |
29×22×24 |
62×38×34 |
16 |
2 |
| SVC-E5 |
19×24×40 |
31×29×48 |
28 |
1 |
| SVC-E8 |
29×24×42 |
40×35×52 |
39 |
1 |
| SVC-E10 |
29×24×42 |
40×35×52 |
40 |
1 |
| SVC-E15 |
40×33×65 |
52×45×74 |
75 |
1 |
| SVC-E20 |
58×35×68 |
70×47×68 |
11 |
1 |
| SVC-E30 |
48×40×96 |
60×52×106 |
165 |
1 | |
|
