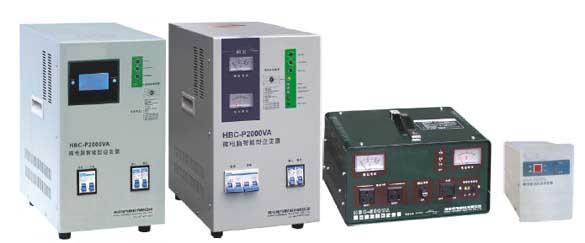

| General (HBC.SPS.HBC-P.SPS-P high reliability full automatic inverter) |
At present, the power energy source is still lack in our country, the power is often cut off in some areas, it causes a lot of electrical appliance can ' t be applied normally. Microcomputer system, communication department, store,
hospital and alarming system where requires the power supply is on all the time, hence, our factory specially develops HBC. SPC series high reliability and full automatic inverte r. The product employs reliable import
integrated circuit as control core, using M C U as central processor for 2 K V A and above units. reliable, high efficiency and high speed MOSFET as power device, traditional anti - impact power frequency transformer with
fine performance as step - p element. It shows rapid response , strong anti - interference, stable output frequency and voltage as well as inversion charge integrated design for inverting and charging , when the commercial power
is off, the inverter automatically switches into the inversion state of battery power supply , and when commercialpower is on, it automatically the output commercial power and with automatic battery charing management
function. This inverter has the function of battery over-voltage protection , adjustment of charge current , undevoltage protection of battery during discharging,over-load protection and so on. It works individually for 24
hrs/day without worrying about power interruption. |
| technicalspecification (HBC.SPS.HBC-P.SPS-P high reliability full automatic inverter) |
| Output rated power |
¡¡100~5000VA |
| Instantaneous peak power |
¡¡2 times of rated power VA(t¡Ü1s) |
| output voltage |
¡¡220V or 110V |
| output frequency |
¡¡50Hz or 60Hz |
| output waveform |
¡¡Corrective sine wave (PWM square ware) |
| Applicable load |
¡¡Resistive load and capacitve load , not suitable for indctive load and ¡¡capacitor step-down power supply |
| Charge input voltage |
¡¡220V or 110V |
| Emergency holding time |
¡¡Depend on battery capacity and load power.The calculation formula as ¡¡followes: |
| Inversion emergency time (H) |
¡¡¡¡¡¡Battery capacity(AH)
¡¡£½©¤©¤©¤©¤©¤©¤©¤©¤©¤©¤©¤©¤ ¡Á0.75
¡¡¡¡¡¡Discharge current (A) |
| Under-voltage protection |
¡¡DC9.5V - 10.0V/DC 12V |
| Over - charge protection |
¡¡DC14.8V - 15.2V/DC12V |
| Under-voltage protection and over-charge protection of battery with other specifications are multiplied addording to 12V | |
| Model & spec (HBC.SPS.HBC-P.SPS-P high reliability full automatic inverter) |
| Model |
tline size(cm) |
Model |
tline size(cm) |
| HBC-100VA/12V~48V |
23¡Á24¡Á16 |
SPS-1000VA/12V |
62¡Á25¡Á52 |
| HBC-200VA/12V~48V |
23¡Á24¡Á16 |
SPS-1500VA/12V |
62¡Á25¡Á52 |
| HBC-300VA/12V~48V |
25¡Á27¡Á20 |
SPS-P2KVA/24V |
73¡Á31¡Á60 |
| HBC-500VA/12V~48V |
25¡Á27¡Á20 |
SPS-P3KVA/24V |
73¡Á31¡Á86 |
| HBC-800VA/12V~48V |
29¡Á30¡Á17 |
HBC-P2000VA/12V~48V(Horizontal type) |
57¡Á27.5¡Á20 |
| HBC-1000VA/12V~48V |
29¡Á30¡Á17 |
HBC-P3000VA/24V~48V(Horizontal type) |
70¡Á27.5¡Á20 |
| HBC-1500VA/12V~48V |
34¡Á33¡Á19.5 |
HBC-P4000VA/36V~48V(Horizontal type) |
71¡Á28.5¡Á24 |
| HBC-1500VA/36V~48V |
31¡Á33¡Á19.5 |
HBC-P5000VA/36V~48V(Horizontal type) |
71¡Á28.5¡Á24 |
| DC-AC(Special for cars)30W/12V |
6¡Á 8¡Á16.5 |
HBC-P2000VA/12V~48V(Vertical type) |
40¡Á24¡Á43 |
| DC-AC(Special for cars)40W/12V |
6¡Á 8¡Á16.5 |
HBC-P3000VA/24V~48V(Vertical type) |
40¡Á24¡Á43 |
| DC-AC(Special for cars)50W/12V |
8¡Á10¡Á20 |
HBC-P4000VA/36V~48V(Vertical type) |
40¡Á28¡Á46 |
| SPS-500VA/12V |
58¡Á20¡Á50 |
HBC-P5000VA/36V~48V(Vertical type) |
40¡Á28¡Á46 | |
|
