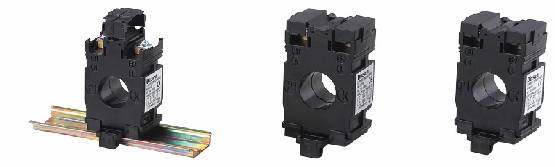

DM Current Transformers |
|
|
| Specification: |
|
Type |
Rated current (A) |
Rated Burden (VA) |
Accuracy class |
Weight (kg) |
|
DM-20 |
15/5 |
- |
1.0 |
|
|
20/5 |
- |
1.0 |
|
|
25/5 |
- |
1.0 |
|
|
30/5 |
- |
1.0 |
|
|
40/5 |
- |
1.0 |
|
|
50/5 |
1 |
1.0 |
|
|
60/5 |
1 |
1.0 |
|
|
75/5 |
1.5 |
1.0 |
|
|
80/5 |
1.5 |
1.0 |
|
|
100/5 |
2.5 |
1.0 |
|
|
125/5 |
2.5 |
0.5 |
|
|
150/5 |
3 |
0.5 |
|
|
200/5 |
5 |
0.5 |
|
|
250/5 |
5 |
0.5 |
|
|
300/5 |
5 |
0.5 |
| |

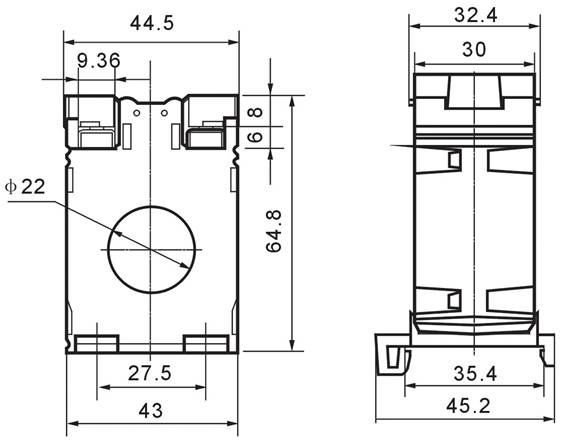

| outline drawing: |
 | |
|
