RED Current Transformers


RED series

Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient: 		100/5-600/5
5A, 1A
BS7626, IEC44-1
0.66kV
50/60Hz
2.5VA-15VA
0.5, 0.5s
Ith=60 X Ih
FS<5
Technical data
Type
A
VA
Class
RED-40
100/5
2.5
1
150/5
2.5
1
200/5
5
1
250/5
5
1
300/5
10
1
400/5
10
1
500/5
10
1
600/5
10
1

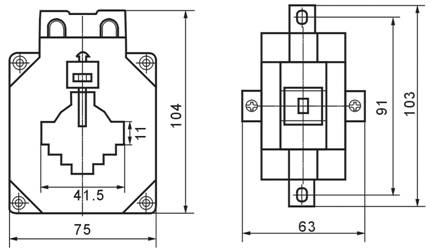

outline drawing:
