Technical data: Material:
● Bakelite, mechanical strength is high, abrasionproof and flame retardant paint, insulation property is good，but brittleness. Working Termperature:- 35℃ to 125℃, short time is 140℃.
● Brass, screw is Iron plated zinc.
● Voltage: 250 - 450V
● Color: Black color as standard
● 胶木，也称电木，机械强度高，坚硬耐磨，性能稳定，耐燃、吸湿性低，绝缘性能佳, 但性脆。工作温度: :- 35℃ 到 125℃, 瞬时可达140℃.
● 黄铜, 螺丝铁质表面镀锌
● 适用电压范围: 250 - 450V
● 颜色: 黑色
|

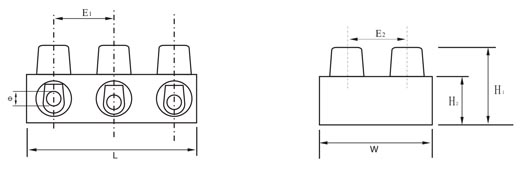

Item no. |
Spec. |
L |
W |
H1 |
H2 |
ø |
E1 |
E2 |
screw size |
material |
|
mm |
|
SP020 |
6A 6mm2 |
32.7 |
24.4 |
16.7 |
11 |
4.5 |
23 |
10.5 |
M3.0 |
Bakelite | |
