Technical data: Material:
● PA, Polyamide 6/6, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,Working Termperature: - 35℃ to 120℃, short time is 140℃.
● Brass, screw is Iron plated zinc.
● Plastic setting Color is blue color as standard
● Voltage: 250 - 450V
● Remark: We can according to customer require supply different size, such as, different length, width, hole diameter etc.
● PA, 尼龙 6/6, 防火等级:94V-2. 阻燃、 抗溶性、抗冲击力好, 工作温度: - 35℃ to 120℃, 瞬时可达140℃
● 黄铜, 螺丝铁质表面镀锌
● 适用电压范围: 250 - 450V
● 底座颜色: 蓝色,特殊颜色欢迎订做
● 备注：我司还可以按客户的要求提供不同长度、宽度、孔径、孔数产品
|

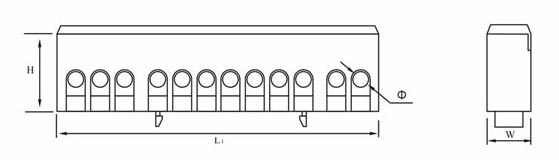

Item no. |
Spec. |
L1 |
L2 |
H |
W |
ø |
screw size |
Plastic setting |
|
w×h-hole |
mm |
|
S.P032 |
6×9-12 |
88.5 |
85.4 |
26.3 |
13 |
5.2 |
M5 |
PA | |
