Material:
● PA, Polyamide 6/6, 94V-2rade. inflaming retarding, good resist dissolve, good bounce impact force, Working Termperature: - 35℃ to 120℃, short time is 140℃.
● Brass, screw is Iron plated zinc.
● Voltage: 250 - 450V
● Color: Grey color
● PA, 尼龙 6/6, 防火等级:94V-2. 阻燃、 抗溶性、抗冲击力好, 工作温度: - 35℃ to 120℃, 瞬时可达140℃.
● 黄铜, 螺丝铁质表面镀锌
● 适用电压范围: 250 - 450V
● 底座颜色: 灰色
|

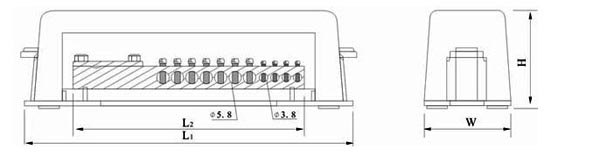

Item no. |
Spec. |
L1 |
L2 |
H |
W |
ø |
screw size |
Plastic setting |
|
w×h-hole |
mm |
|
SP034-01 |
14×10-7 |
173 |
138 |
42 |
51.5 |
5.8 |
M5×10 |
PA |
|
SP034-02 |
14×10-11 |
173 |
138 |
42 |
51.5 |
5.8 |
M5×10 |
PA | |
