LMZ3-0.66 Current Transformers

LMZ3-0.66 type current transformer

-     Type description

Rated voltage(KV)
Design NO
Cast-resin insulated
Busbar type
Current transformer
     -     Technical date

Type
Rated transformation ratio (A)
Conflux platoon
Straight-through turn No.
Accuracy class and rated output COSØ=0.8
Rated insulation leer(kV)
Section(mm)
Purchase
0.5
1

LMZ3-0.66

Fixed Bus


5-100/5
5
10

0.66/3
5-100/5
5
10
Ø28
100/5
1
5
10
150/5
1
5
10
-32
100/5
30-8
1
1
5
10
150/5
30-8
1
1
5
10
200/5
30-8
1
1
5
10
300/5
30-8
1
1
5
10
-42
300/5
40-10
1
1
5
10
400/5
40-10
1
1
5
10
500/5
40-10
1-2
1
5
10
600/5
40-10
1-2
1
5
10
-52
400/5
50-10
1
1
5
10
500/5
50-10
1
1
5
10
600/5
50-10
1
1
5
10
800/5
50-10
1
1
5
10
-58
500/5
55-10
1
1
5
10
600/5
55-10
1
1
5
10
800/5
55-10
1
1
5
10
-62
600/5
60-10
1-2
1
5
10
800/5
60-10
1-2
1
5
10
1000/5
60-10
1-2
1
10
15
-85
800/5
80-10
1-3
1
5
10
1000/5
80-10
1-3
1
10
15
1200/5
80-10
1-3
1
10
15
-105
1000/5
100-10
2-3
1
10
15
1200/5
100-10
2-3
1
10
15
1500/5
100-10
2-3
1
10
15
2000/5
100-10
2-3
1
15
20
-125
2000/5
120-10
2-3
1
15
20
2500/5
120-10
2-3
1
15
20
3000/5
120-10
2-3
1
15
20
4000/5
120-10
2-3
1
15
20

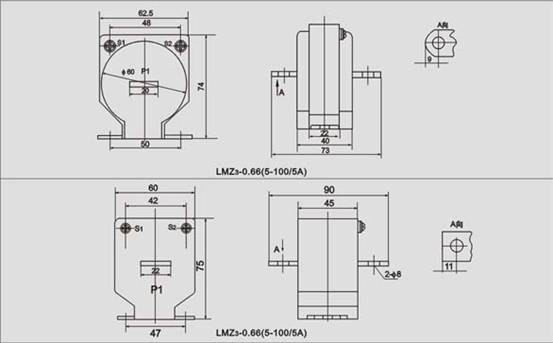

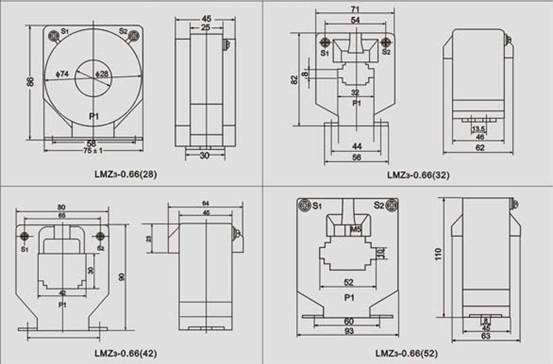

-     Overall dimension drawing
