KT14 series AC cam controller
Use working condition and model significance
1.1.  KT14 series cam controller (hereafter refers to as controller) to use in AC 50HZ voltage to 380 volts electric circuits in,Mainly as hoist crane motor starting and the commutation using of. This controller has the reversible             symmetrical electric circuit, is suitable in the hoist crane translation organization and the elevating mechanism, also can make the similar nature electric motor thestarting, the commutation and the adjustment using of.
1.2 .KT14-25J/1, the KT14-60J/1 controller for controls a three-phase winding thread induction motor.
1.3. KT14-25J/2, the KT14-60J/2 controller controls two and three-phase winding thread induction motor for at the same time.
1.4.  KT14-25J/3 controller for controls a three-phase mouse cage induction motor.
1.5. KT14-60J/4 controller controls two three-phase winding thread induction motor for at the same time, but does not bring the stator electric circuit the contact.
1.6.  controllers regular service conditons: The altitude above sealevel does not surpass 2,500 meters; The surrounding air temperature highest is +40 ¡æ, most is low is -25 ¡æ; The air relative humidity is not bigger than 90%; Does not have the  remarkable undulation and the impact vibration place; In does not have the explosion hazard in the medium, also in the medium does not have the sufficiently dipping and the destruction insulation gas and the dust (including electric
conduction dust); Is not having the sleet attack the place.  1.7 models significances:
  1. machinery

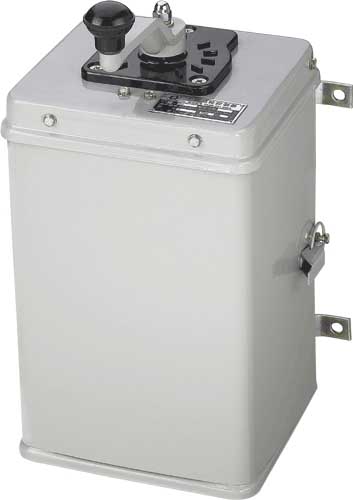

    2.1 controllers outer coverings are the protected types.

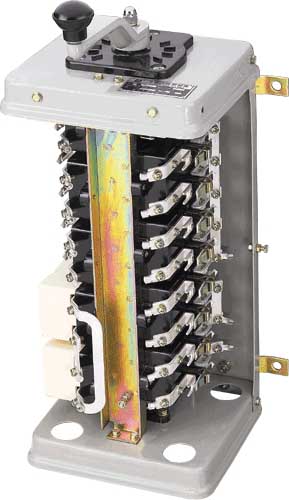

    2.2 controllers contact systems for the double break point, the translation type, the extinguishing of arc system use the semi-enclosed type longitudinal seal pottery clay explosion chamber, and matches by the strong magnetism blows the electric circuit, extinguishing of arc ability.
    2.3 contacts systems structure for the building block box type, the two-row arrangement, the assembly is convenient, the structure compact disassembles and assembles easily.
    2.4 contacts closed and the separation relies on the bakelite cam piece composition different angle, with revolves the way realization.

  2. Technical performance and data

    3£®1Controller main engineering data

    type

    voltage ratingV

    current ratingA

    Working position number

    The electric motor continues which when the circular telegram to lead
    is 25% can control

    Fixed operating frequency/H

    The biggest working week bullies min

    avoirdupois£¨Kg£©

    To front (rise)

    To after (drop)

    Rotor maximum current A

    Maximum work rate KW

    KT14-25J/1

    380

    25

    5

    5

    32

    11

    600

    10

    14.5

    KT14-25J/2

    380

    25

    5

    5

    32

    2¡Á5£®5

    600

    10

    18.2

    KT14-25J/3

    380

    25

    1

    1

    32

    £µ£®£µ

    600

    10

    13.5

    KT14-60J/1

    380

    60

    5

    5

    80

    30

    600

    10

    15

    KT14-60J/2

    380

    60

    5

    5

    80

    2¡Á11

    600

    10

    18.2

    KT14-60J/4

    380

    60

    5

    5

    80

    2¡Á30

    600

    10

    15

    3.2  controllers mechanical lives in operating frequency 600/In h situation,Is not smaller than 150 104.
    3.3  controllers operation strength are not bigger than 49N.

  3. overall dimension and installation dimension

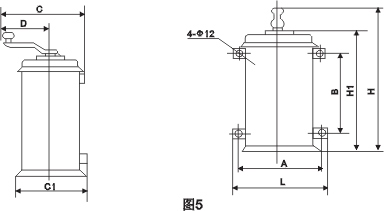

    4.1 controllers contours like chart 5 shows:
    4.2 controllers and install the size like table 2 to show: Shows 2mm

    spec

    A

    B

    C

    C1

    D

    H

    H1

    L

    KT14-25J/1

    270

    270

    305

    248

    175

    510

    405

    300

    KT14-25J/2

    270

    402

    305

    248

    175

    642

    537

    300

    KT14-25J/3

    270

    270

    305

    248

    175

    510

    405

    300

    KT14-60J/1

    270

    270

    305

    248

    175

    510

    405

    300

    KT14-60J/2

    270

    402

    305

    248

    175

    642

    537

    300

    KT14-60J/4

    270

    314

    305

    248

    175

    554

    449

    300



  4. wearing parts

    Controller vulnerable see Table 3         tables 3

    serial number



    Name

    Suitable situation

    1

    5L¡Á.551.002

    Moving contact

    60J stator electric circuit contact and 60J/4 rotor electric circuit

    2

    5L¡Á.551.001

    Moving contact

    25J stator, rotor, auxiliary circuit contact and 60J/4 rotor electric
    circuit auxiliary circuit contact and 60J/2 rotor electric circuit
    contact

    3

    5L¡Á.551.005

    Static contact

    60J stator electric circuit contact and 60J/1, 60J/4 rotor electric
    circuit contact

    4

    5L¡Á.551.006

    Static contact

    60J stator electric circuit contact and 60J/1, 60J/4 rotor electric
    circuit contact

    5

    5L¡Á.551.004

    Static contact

    25J stator, rotor, auxiliary circuit contact and 60J auxiliary circuit
    contact and 60J/2 rotor electric circuit contact

    6

    5L¡Á.551.003

    Static contact

    25J stator, rotor, auxiliary circuit contact and 60J auxiliary circuit
    contact and 60J/2 rotor electric circuit contact

    7

    8L¡Á.282.003

    Static contact

    25J and 60J contact system

    8

    8L¡Á.282.005

    Reaction spring

    25J and 60J contact system

    9

    8L¡Á.744.002

    Extinguishing of arc cover

    25J and 60J contact system

  5. build in and servicing

     6.1 installments precheck controller, like determination controller operation clever, when the files position is clear, the controller only then may install.
    6.2 controllers must reliably fix on angle iron stand 'or' operation. Taiwan, outside meet the electric cable wire to be possible to penetrate by the foundation on hole.
    6.3 controllers should reliably earth.
    6.4 controllers stators electric circuit contact must install the complete extinguishing of arc cover.
    6.5 with skids the friction in controller all rotations place, must the regular apply oil fat, by reduce the friction                                                                                                                                                         6.6 controllers when work the contact but produces as a result of the electric arc burns black or the singeing phenomenon, this does not affect its performance, does not need to eliminate, otherwise counter-
    can urge the controller to damage ahead of time.
    6.7 controllers contacts exceeds the quota the travelling schedule to be smaller than when 0.5 millimeter should exchange the new contact, when installs the contact system and moves, the static contact
    guidance place on its roller axis spreads the lubricating grease, and adjusts the double break point contact closed and the separation synchronism.
    6.8 should eliminate in the controller regularly the dust.
    6.9 pays attention to the fastening parts frequently whether has the loose situation, like has must eliminate.

  6. Ordering notice (when ordering must indicate)

    £¨1£©Ordering notice (when ordering must indicate)
    £¨2£©Easy to damage components chart or illustration number, name and quantity (silver contact basis special details consultation supply).
    £¨3£©General or is hot and damp.

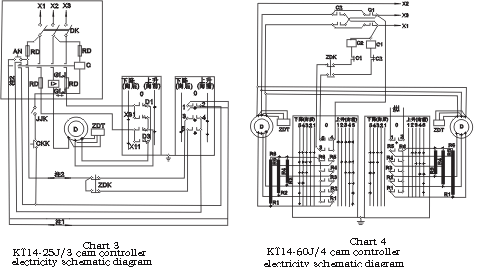

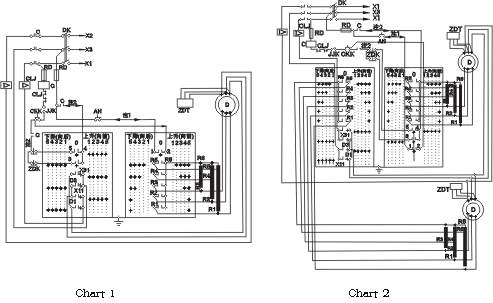

  7. Electrical schematic diagram

    KT14-25J/1 KT14-25J/2
    KT14-60J/1KT14-60J/1 cam controller electricity schematic diagram                                                  KT14-60J/2 cam controller electricity schematic diagram
    gas
    Note: 1st, in multi- direct motor drive system, other controllers note: 1st, in multi- direct motor drive system, other controllers contacts The contact 1 and 2 receives in this electric circuit. 1 and 2 receives in this electric circuit.
    2nd, in multi- direct motor drive system, terminal switch and 2, in multi- motives actuation system, terminal switch and other controllers
    Other controller contacts3 , 4 , 5 receive this electric circuit contact 3 4 5 to receive in this electric circuit.
    In.


    KT14-25J/1 KT14-25J/2
    KT14-60J/1KT14-60J/1 cam controller electricity schematic diagram                                                             KT14-60J/2 cam controller electricity principle note:                                                                                    1st, in multi- direct motor drive system, other notes: In multi- direct motor drive system, other controllers contacts. The controller contact 1 and 2 receives in this electric circuit in. 1 and 2 receives in this electric circuit.
    2nd, in multi- direct motor drive system, terminal switch and Its controller contact 3 4 5 receives in this
    electric circuit.
