The use and type meaning

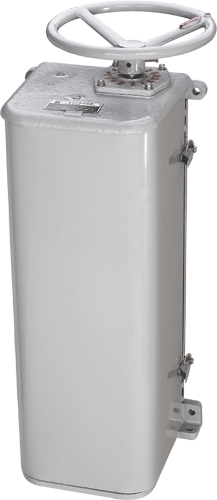

1、KTJ1-150 series cam controller,is used in 50HZ voltage to 380 V circuits , mainly used as starting, speed governing and inverting the AC motor.

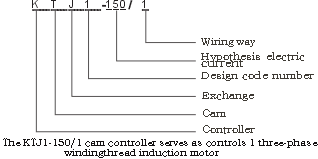

2、Type meaning: ：

The cam controller of Model KTJ1-150/1 is used as controlling the winding the line type reaction motor of a set of three phases.

Technical data

Type

Specified electric current (A)

Specified voltage (V)

Weight (kilogram)

Forward (Up)

Backward (Down)

inter>The job position counting

Setting up an electric circuit rate =40% motor 380V of high-power (kilowatt ) the mosts controlled

Touch the irregular electric current of a horizontal tablet of head auxiliarily (A)

Operate the number of times the most largly per hour

The biggest work period (minute)
KTJ1-150/1

150

380

7

7

100

15

600

10

85

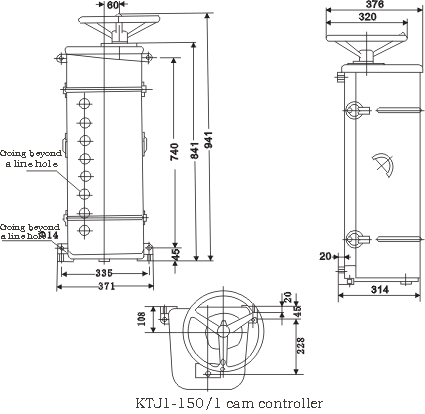

The appearance and size of installation
Wiring diagram
