JIS-C-3501 COAXIAL CABLE                          日规同轴电缆

●导体使用单支或绞合镀锡或裸铜

●参考标准：JIS C 3501

●PE绝缘，符合ROHS环保标准

●PVC护套，符合ROHS环保标准

●镀锡或裸铜编织屏蔽

●用于传输系统或单项控制系统

●Solid or stranded ,tinned or bare copper conductor

●Reference standard：JIS C 3501

●PE insulation, comply with ROHS environmental standard

●PVC jacket , comply with ROHS environmental standard

●Tinned or bare copper wire braid shield

●For use with communication and signal control systerm

导体

CONDUCTOR

绝缘

INSULATION

编织

BRAID

护套

JACKET

特性阻抗

CHARACTERISTIC

IMPEDANCE

 (Ω)

规格

AWG

构造

CONSTR-

UCTION

(No./mm)

外径

  DIA.

(mm)

绝缘厚度

INSULATION

THICKNESS

(mm)

外径

O.D.

(mm)

构造

CONSTRUCTION

(No./No./mm)

护套厚度

JACKET

THICKNESS

(mm)

外径

O.D.

(mm)

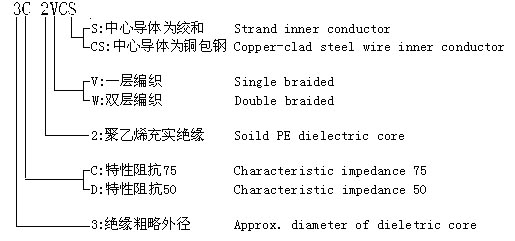

1.5C-2V

1/0.254

0.254

0.67

1.60

16/5/0.10

0.45

2.90

75

2.5C-2V

1/0.40

0.40

1.00

2.40

16/7/0.10

0.60

4.00

75

3C-2V

1/0.50

0.50

1.25

3.00

16/7/0.12

0.76

5.00

75

5C-2V

1/0.80

0.80

2.00

4.80

24/9/0.10

1.00

7.20

75

1.5D-2V

7/0.18

0.54

0.53

1.60

16/5/0.10

0.45

2.90

50

2.5D-2V

1/0.80

0.80

0.95

2.70

16/7/0.12

0.56

4.30

50

3D-2V

7/0.32

0.96

1.02

3.00

16/7/0.12

0.81

5.10

50

5D-2V

1/1.40

1.40

1.70

4.80

24/7/0.12

0.86

7.00

50
