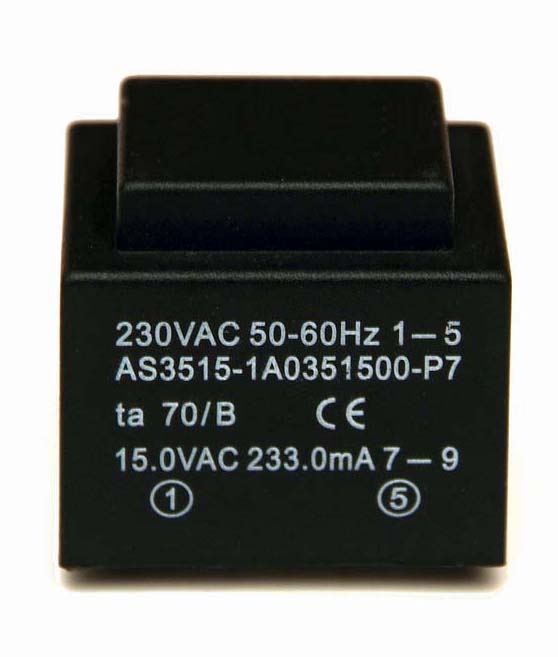

EI35/15-3.5VA Encapsulated Transformer
Vacuum Filled
Split Bobbin Design
Temperature Class ta 70¡æ/B
Dielectric Strength 4500Vrms
Weight£º 155  grams
¡¡Accrding to£º

¡¡EI35/15-3.5VA

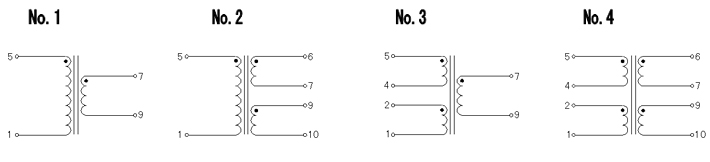

PART NO Primary[V] Secondary[V] Current[mA] Pin No-Load Voltage[V] Schematic No
EI3515-E-0350-060-S 230v~ 6 583.0 1+5/7+9 7.6 1
EI3515-E-0350-090-S 230v~ 9 388.0 1+5/7+9 11.5 1
EI3515-E-0350-120-S 230v~ 12 291.0 1+5/7+9 15.5 1
EI3515-E-0350-150-S 230v~ 15 233.0 1+5/7+9 19.0 1
EI3515-E-0350-180-S 230v~ 18 194.0 1+5/7+9 22.8 1
EI3515-E-0350-240-S 230v~ 24 145.0 1+5/7+9 30.0 1
EI3515-E-0350-060-D 230v~ 2¡Á6 2¡Á291.0 1+5/6+7-9+10 2¡Á8.0 2
EI3515-E-0350-075-D 230v~ 2¡Á7.5 2¡Á233.0 1+5/6+7-9+10 2¡Á10.0 2
EI3515-E-0350-090-D 230v~ 2¡Á9 2¡Á194.0 1+5/6+7-9+10 2¡Á11.5 2
EI3515-E-0350-120-D 230v~ 2¡Á12 2¡Á145.0 1+5/6+7-9+10 2¡Á15.5 2
EI3515-E-0350-150-D 230v~ 2¡Á15 2¡Á116.0 1+5/6+7-9+10 2¡Á19.0 2
EI3515-E-0350-180-D 230v~ 2¡Á18 2¡Á97.0 1+5/6+7-9+10 2¡Á22.8 2
EI3515-E-0350-240-D 230v~ 2¡Á24 2¡Á73.0 1+5/6+7-9+10 2¡Á30.0 2
EI3515-U-0350-060-S 115v~ 6 583.0 1+5/7+9 7.6 1
EI3515-U-0350-090-S 115v~ 9 388.0 1+5/7+9 11.5 1
EI3515-U-0350-120-S 115v~ 12 291.0 1+5/7+9 15.5 1
EI3515-U-0350-150-S 115v~ 15 233.0 1+5/7+9 19.0 1
EI3515-U-0350-180-S 115v~ 18 194.0 1+5/7+9 22.8 1
EI3515-U-0350-240-S 115v~ 24 145.0 1+5/7+9 30.0 1
EI3515-U-0350-060-D 115v~ 2¡Á6 2¡Á291.0 1+5/6+7-9+10 2¡Á8.0 2
EI3515-U-0350-075-D 115v~ 2¡Á7.5 2¡Á233.0 1+5/6+7-9+10 2¡Á10.0 2
EI3515-U-0350-090-D 115v~ 2¡Á9 2¡Á194.0 1+5/6+7-9+10 2¡Á11.5 2
EI3515-U-0350-120-D 115v~ 2¡Á12 2¡Á145.0 1+5/6+7-9+10 2¡Á15.5 2
EI3515-U-0350-150-D 115v~ 2¡Á15 2¡Á116.0 1+5/6+7-9+10 2¡Á19.0 2
EI3515-U-0350-180-D 115v~ 2¡Á18 2¡Á97.0 1+5/6+7-9+10 2¡Á22.8 2
EI3515-U-0350-240-D 115v~ 2¡Á24 2¡Á73.0 1+5/6+7-9+10 2¡Á30.0 2
EI3515-U2-0350-060-S 2*115v~ 6 583.0 1+2-4+5/7+9 7.6 3
EI3515-U2-0350-090-S 2*115v~ 9 388.0 1+2-4+5/7+9 11.5 3
EI3515-U2-0350-120-S 2*115v~ 12 291.0 1+2-4+5/7+9 15.5 3
EI3515-U2-0350-150-S 2*115v~ 15 233.0 1+2-4+5/7+9 19.0 3
EI3515-U2-0350-180-S 2*115v~ 18 194.0 1+2-4+5/7+9 22.8 3
EI3515-U2-0350-240-S 2*115v~ 24 145.0 1+2-4+5/7+9 30.0 3
EI3515-U2-0350-060-D 2*115v~ 2¡Á6 2¡Á291.0 1+2-4+5/6+7-9+10 2¡Á8.0 4
EI3515-U2-0350-090-D 2*115v~ 2¡Á9 2¡Á194.0 1+2-4+5/6+7-9+10 2¡Á11.5 4
EI3515-U2-0350-120-D 2*115v~ 2¡Á12 2¡Á145.0 1+2-4+5/6+7-9+10 2¡Á15.5 4
EI3515-U2-0350-150-D 2*115v~ 2¡Á15 2¡Á116.0 1+2-4+5/6+7-9+10 2¡Á19.0 4
EI3515-U2-0350-180-D 2*115v~ 2¡Á18 2¡Á97.0 1+2-4+5/6+7-9+10 2¡Á22.8 4
EI3515-U2-0350-240-D 2*115v~ 2¡Á24 2¡Á73.0 1+2-4+5/6+7-9+10 2¡Á30.0 4
