EI54/18.8-16.0VA
Vacuum Filled
Split Bobbin Design
Temperature Class ta 40¡æ/B
Dielectric Strength 4500Vrms
Weight£º410 grams
¡¡Accrding to£º

¡¡EI54/18.8-16.0VA

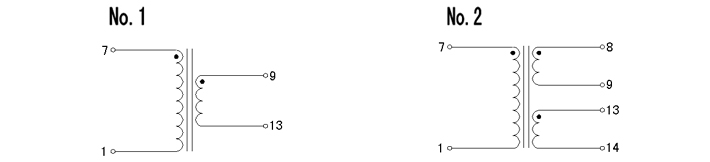

PART NO Primary[V] Secondary[V] Current[mA] Pin No-Load Voltage[V] Schematic No
EI5418-E-1600-060-S 230v~ 6 2666.0 1+7/9+13 7.5 1
EI5418-E-1600-090-S 230v~ 9 1777.0 1+7/9+13 11.3 1
EI5418-E-1600-120-S 230v~ 12 1333.0 1+7/9+13 14.9 1
EI5418-E-1600-150-S 230v~ 15 1066.0 1+7/9+13 18.5 1
EI5418-E-1600-180-S 230v~ 18 888.0 1+7/9+13 22.0 1
EI5418-E-1600-240-S 230v~ 24 666.0 1+7/9+13 29.6 1
EI5418-E-1600-060-D 230v~ 2¡Á6 2¡Á1333.0 1+7/8+9-13+14 2¡Á7.5 2
EI5418-E-1600-075-D 230v~ 2¡Á7.5 2¡Á1066.0 1+7/8+9-13+14 2¡Á9.2 2
EI5418-E-1600-090-D 230v~ 2¡Á9 2¡Á888.0 1+7/8+9-13+14 2¡Á11.3 2
EI5418-E-1600-120-D 230v~ 2¡Á12 2¡Á666.0 1+7/8+9-13+14 2¡Á15.0 2
EI5418-E-1600-150-D 230v~ 2¡Á15 2¡Á533.0 1+7/8+9-13+14 2¡Á18.7 2
EI5418-E-1600-180-D 230v~ 2¡Á18 2¡Á444.0 1+7/8+9-13+14 2¡Á22.4 2
EI5418-E-1600-240-D 230v~ 2¡Á24 2¡Á333.0 1+7/8+9-13+14 2¡Á29.0 2
EI5418-U-1600-060-S 115v~ 6 2666.0 1+7/9+13 7.5 1
EI5418-U-1600-090-S 115v~ 9 1777.0 1+7/9+13 11.3 1
EI5418-U-1600-120-S 115v~ 12 1333.0 1+7/9+13 14.9 1
EI5418-U-1600-150-S 115v~ 15 1066.0 1+7/9+13 18.5 1
EI5418-U-1600-180-S 115v~ 18 888.0 1+7/9+13 22.0 1
EI5418-U-1600-240-S 115v~ 24 666.0 1+7/9+13 29.6 1
EI5418-U-1600-060-D 115v~ 2¡Á6 2¡Á1333.0 1+7/8+9-13+14 2¡Á7.5 2
EI5418-U-1600-075-D 115v~ 2¡Á7.5 2¡Á1066.0 1+7/8+9-13+14 2¡Á9.2 2
EI5418-U-1600-090-D 115v~ 2¡Á9 2¡Á888.0 1+7/8+9-13+14 2¡Á11.3 2
EI5418-U-1600-120-D 115v~ 2¡Á12 2¡Á666.0 1+7/8+9-13+14 2¡Á15.0 2
EI5418-U-1600-150-D 115v~ 2¡Á15 2¡Á533.0 1+7/8+9-13+14 2¡Á18.7 2
EI5418-U-1600-180-D 115v~ 2¡Á18 2¡Á444.0 1+7/8+9-13+14 2¡Á22.4 2
EI5418-U-1600-240-D 115v~ 2¡Á24 2¡Á333.0 1+7/8+9-13+14 2¡Á29.0 2
