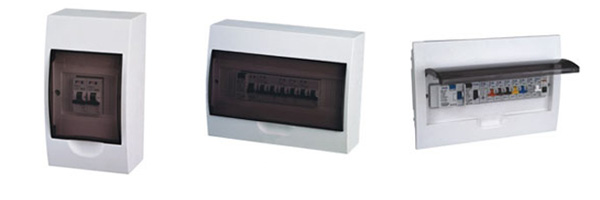

Applicable scope |
|
MG Modular distribution box is mainly used in the circuit of AC 50Hz and rated voltage 220V/380V, and acted to install the modular combination equipment. It is widely used in family、high building、house、station、port、airport、commercial house、hospital、cinema、enterprise and so on occasions. The plastic unit of the ERX1 modular distribution box adopts ABS flame-proof material with the characteristics of flame-proof、impulse-proof、excellent insulation property and so on.This products confirm to the standard BS EN 60439-3; JB/T7121-93. |
|
|
Structure and features |
|
|
This product is provided with elegant appearance and reasonable structure; installation and dismounting are easy; The product is designed according to the requirement of standardization、generalization and seriation, which make the products with excellent interchangeability. |
|
|
|
| Rated frequency |
50Hz |
| Rated voltage |
220/380V |
| Way numbers |
4, 6, 8, 12, 16, 18, 24, 36, 54 |
| Box base material |
Plastic , metal |
| Rated current |
No more than 250A |
|
Rated current for each short circuit electric of preventing |
No more than 125A | |
|
|
| |
|
|
|
Installation dimension
|
 |
|

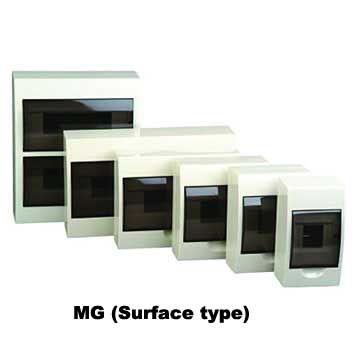

MG type
(Surface base) |
Ways |
A |
B |
C |
| 4 |
200 |
112 |
93 |
| 6 |
200 |
148 |
93 |
| 8 |
200 |
185 |
93 |
| 12 |
200 |
256 |
93 |
| 18 |
220 |
364 |
93 |
|
MG type
(Recessed base) |
4 |
190 |
110 |
80 |
| 8 |
190 |
180 |
80 |
| 12 |
190 |
250 |
80 |
| 16 |
190 |
320 |
80 |
| 18 |
200 |
358 |
80 |
| 24 |
330 |
250 |
80 |
| 36 |
420 |
357 |
80 |
| 54 |
650 |
360 |
80 | |
|
