Usage

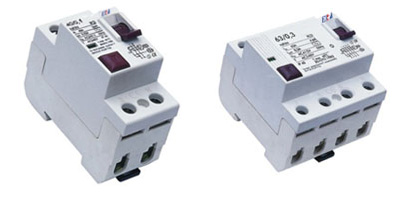

  The Residual Current Device(RCD) NFIN is in conformity with the standards of IEC61008, VDE 0664, CEE27 and BS4293.
  It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.
  NFIN RCD is mainly suitable for using in varieties of plants, enterprises, buildings, constructions, commerce, guesthouses and families. It can be used in circuits up to single phase 240V,threephase 415V,50 or 60Hz.

¡¡

Specification

Type NFIN25 NFIN40 NFIN63 NFIN100
Rated current (A) 25 40 63 100
Rated operating current 0.03,0.1,0.3,0.5 0.03,0.1,0.3,0.5
for earth leakage I¡÷n(A) 0.5I¡÷n
Voltage Un(V) 240(220)V 415(380)V
Pole 2, 4
Main Technical Data ¡¡
¡¡

Operating time(second)

I¡÷n 2I¡÷n 0.25A(or51¡÷n)
0.2 0.1  0.04

Limited £¦#118alue of non-operating
or unbalance load

2In

In minimum £¦#118alue of rated
making and breaking capacity

 In=25  In=40  In=63
 200  300  400

Rated conditional short
circuit current Inc(A).

 1500  2000  3000

Endurance(times)

4000
